CNC Thickness Adjustable Wooden Plate Veneer Cutting Machine

CNC Thickness Adjustable Wooden Plate Veneer Cutting Machine is used for making wooden plates with high precision thickness. It is designed with a PLC control touch screen which allows setting the thickness of the system very simple.  The wooden plate Venner thickness range can be made from 0.3mm to 6.5mm thickness. Table of Contents Advantage Feature of Thickness Adjustable Wooden Plate Veneer ...
  • PRODUCT DETAIL

Thickness-Adjustable-Rotary-Wooden-Veneer-Cutting-Machine

CNC Thickness Adjustable Wooden Plate Veneer Cutting Machine is used for making wooden plates with high precision thickness. It is designed with a PLC control touch screen which allows setting the thickness of the system very simple.  The wooden plate Venner thickness range can be made from 0.3mm to 6.5mm thickness.

Disposable-Wooden-Spoon-Wooden-Plate-Veneer

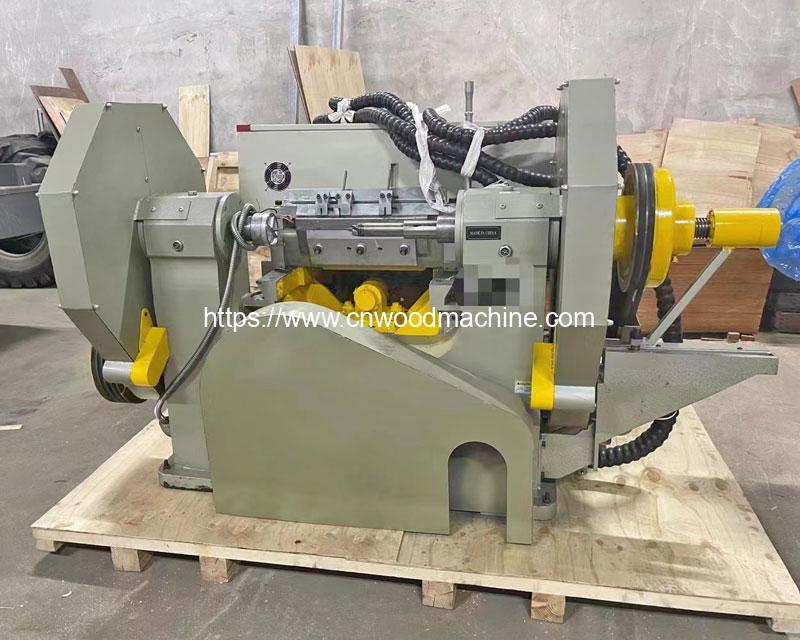

Thick-Adjustable-Disposable-Wooden-Spoon-Veneer-Plate-Cutting-Machine PLC-Control-Disposable-Wooden-Spoon-Veneer-Rotary-Cutting-Machine

Advantage Feature of Thickness Adjustable Wooden Plate Veneer Cutting Machine

  1. High Accurate Thickness Cutting: It is driven by a servo motor with high rotary speed and high accurate thickness veneer output.
  2. Easy to Set Veneer Thickness: without changing parts we can get the setting thickness. For the old type rotary wooden plate veneer cutting machine, we need to change gear for different thicknesses, which is complete.
  3. High-Quality Wooden Plate Surface
  4. Wide Wooden Plate Thickness from 0.5 to 6.5mm, which is suitable for different product making.

Specification of Thickness Adjustable Wooden Veneer Cutting Machine

ModelRM-CRC800
Wooden Log Diameter45mm to 800 MM
Log WidthMax 520mm
Cutting Thickness0.3mm to  6.5 MM
Control SytemPLC Touch Screen Control
Rotary Speed280 rpm(high accuracy)
Thickness Accuracy0  to 0.05mm
Main Motor Power15kw
Clamp Motor Power2.2kw
Servo Motor Power5.5kw
Packing Size2350*1960*1550mm
Weight2400kg

Working Video of Thickness Adjustable Wooden Veneer Plate Cutting Machine

Company Profile

Romiter Machinery Co., Ltd. is a market-leading designer and a manufacturer of woodworking machines. Romiter Machinery wins a wide reputation for high-quality machines with high efficiency, excellent reliability, easy maintenance, long lifespan and an excellent technical support team.

Now, Our factory can provide ice cream stick production line ( including ice cream stick carved cutting machineice cream stick polishing machine, ice cream stick ordering machine, ice cream stick chamfering machine, ice cream stick quality vision selecting machine, ice cream stick branding machine and ice cream stick bundling machine), tongue depressor production line (include tongue depressor die cutting machine, tongue depressor dryer machine, tongue depressor polishing machine, tongue depressor ordering machine, tongue depressor quality selecting machine, tongue depressor bundling machine, tongue depressor four side sealing packing machine), disposable wooden spoon making machine (mainly including wooden spoon hot pressing making machine)   disposable wooden fork making machine, (mainly include wooden fork teeth making machine) disposable wooden knife making machine, vending coffee stick bundling machine, disposable wooden cutlery production line.

Romiter woodworking machine has passed with CE, ISO and SGS Certificates and has been widely sold all over the world.
