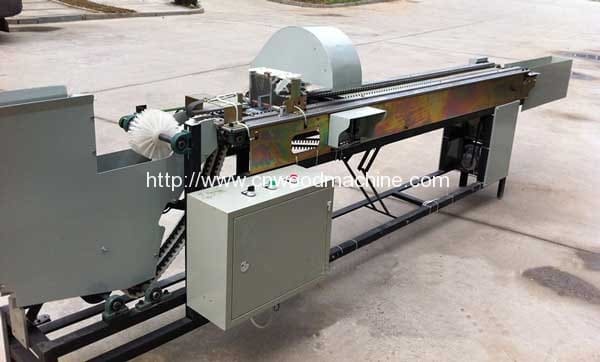

Tongue Depressor Bend & Thin Selecting Machine

Tongue depressor quality checking and selecting machine is used to remove bend and thin tongue depressor. It adopt chain feeding and optical fibre detecting. After the PLC control system get singal from optical firber detecting device, PLC will control pneumatic electromagnetic valve to remove unqualified tongue depressor. After selecting machine, the tongue depressor is ordering arranged, so it ...
  • PRODUCT DETAIL

Tongue-Depressor-Bend-Thin-Selecting-Machine

Tongue depressor quality checking and selecting machine is used to remove bend and thin tongue depressor. It adopt chain feeding and optical fibre detecting. After the PLC control system get singal from optical firber detecting device, PLC will control pneumatic electromagnetic valve to remove unqualified tongue depressor. After selecting machine, the tongue depressor is ordering arranged, so it is convienient for box filling or packing.

Specification of Tongue Depressor Selecting Machine



  • Dimension:3600mm*700mm*1200mm
  • Power:0.37kw
  • Capacity:  30000pcs/h (adjustable)
  • Weight:180kg

Advantage Feature of Tongue Depressor Selecting Machine

  1. Automatic Tongue Depressore Feeding and adjustable speed for human operation.
  2. Two position switch for easy operation, worker can control machine in inlet or outlet position
  3. Overturn wheel design can overturn tongue depressor after quality checking. so worker can check another side.
  4. Ordering arrange function after selecting, convienient for box filling or packing

Working Video of Tongue Depressor Selecting Machine
