Wooden Dowel Product Line

Wooden Dowel Production Line Process:

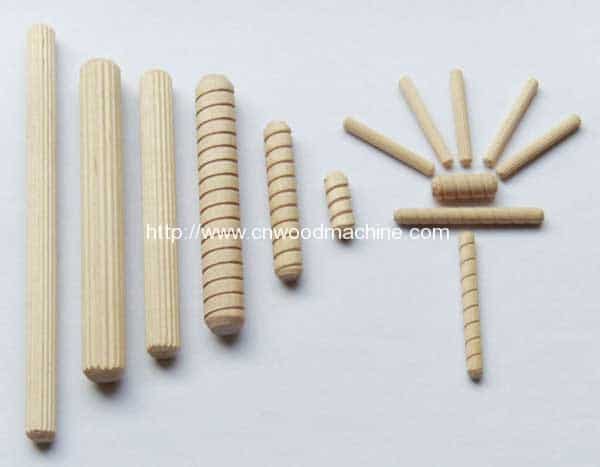

Saw square dry wooden block-square wooden rod-sculptured rod-dowel

Equipment List

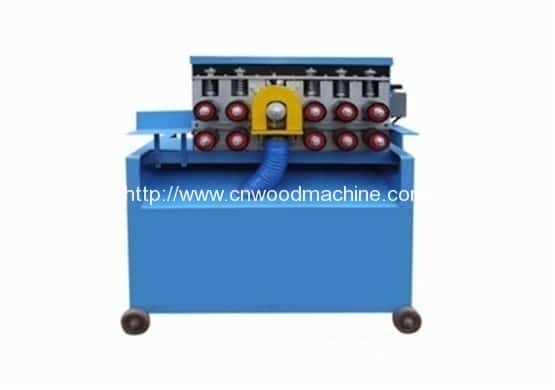

1. Square Wooden Rod Forming Machine

Square Wooden Rod Forming Machine

This machine is used for the whole piece of wood cut into slices. And then cut the slices into square wooden rods.

Item Model Built Power Board-Box Pack Weight
(KW) Size(L×W×H cm) (kg)
Square wooden rod forming machine RM-623 6.23 120×70×120 420

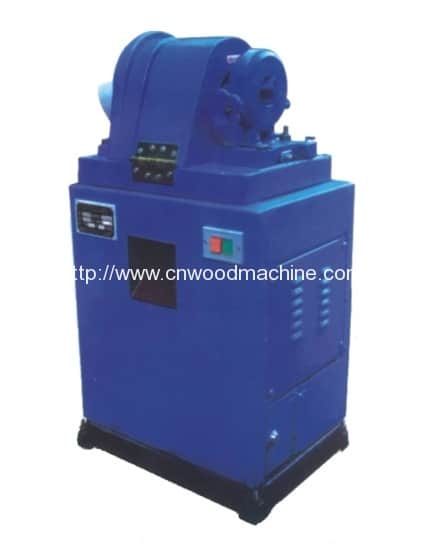

2. Diagonal Sculpture Machine

diagonal Sculpture Machine

This machine is used to sculpture the diagonal of the dowel. Diameter of revolving rod is 6mm,8mm,10mm,12mm.

Item Model Built Power Board-Box Pack Weight
(KW) Size(L×W×H cm) (kg)
Diagonal sculpture machine RM-075 0.75 40×30×75 65

Working Video

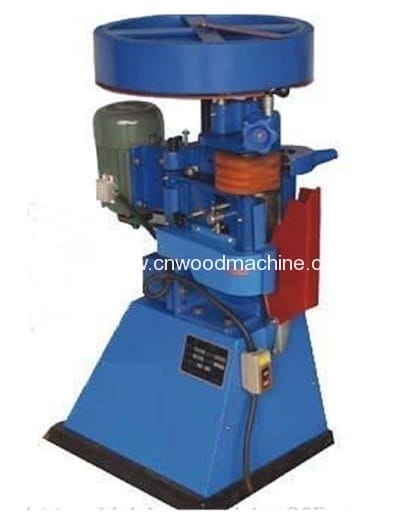

3. Dowel Crosscut Machine

Dowel Crosscut Machine

This machine is used for the diagonal wooden rods cut into dowels. The length of dowels is 30mm—80mm.

Item Model Built Power Board-Box Pack Weight
(KW) Size(L×W×H cm) (kg)
Dowel crosscut machine RM-055 0.55 60×48×95 40

Working Video
