Dust-free Chalk Making Machine

CHALK MAKING MACHINE is very sturdy and efficient to work. You will get best quality chalk from our products. We can supply series of school chalk making machines, dust-free chalk machines as your required. 1.  Mixing Machine of Dust-free Chalk Making Machine Feature 1. Contact components is made of stainless steel, to ensure the purity and quality of the chalk. 2. Mixing with double screw, to mak ...
  • PRODUCT DETAIL

CHALK MAKING MACHINE is very sturdy and efficient to work. You will get best quality chalk from our products. We can supply series of school chalk making machines, dust-free chalk machines as your required.

1.  Mixing Machine of Dust-free Chalk Making Machine

Feature

1. Contact components is made of stainless steel, to ensure the purity and quality of the chalk.
2. Mixing with double screw, to make sure the material mixed quickly and uniformly.

Specification

  • Model: RNH-100
  • Mix Speed: 35/22 RPM
  • Power: 5.5KW  380V
  • Packing Size (mm): 2300×1000×1000 (L*W*H)
  • Weight: 1000KG
  • Volume: 100L

extrusion-machine-for-dustless-chalk-making-machine

2.    Extrusion Machine of Dust-free Chalk Making Machine

Feature:

  • Stepless speed change, can change the speed according to customers’ requirement at any time.
  • Weld with hard alloy on the grinding part, to prolong service life.
  • Contact components is made of stainless steel, to ensure the purity and quality of the chalk.
  • Feeding pipe is open-type, it’s easy to feed and maintenance.
  • Can product many kinds of chalks.

Specification

  • Model: RJC-100
  • Speed range: 28~200 RPM
  • Power: 4.5KW  380V
  • Output: 80,000~90,000pcs/8hours
  • Packing Size (mm): 2000×900×1450 (L*W*H)
  • Weight: 1400KG

Working Video



3.  Transmission Machine of Dust-free Chalk Making Machine

Feature
1. High strength aluminum alloy structure beam, durability without deformation.
2. Speed and height can be changed, convenient to use.

Specification

  • Model: RSS-100
  • Speed range: 0~5 m/min
  • Power: 220V 50/60HZ
  • Material: PVC
  • Packing Size (mm): 2300×1000×1000 (L*W*H)
  • Weight: 300KG



transmission-machine-for-dustless-chalk-making-machine

4.  Cutting Set of Dust-free Chalk Making Machine

Feature:
The blade is made by stainless steel, can product chalks with same length.

Specification

  • Model: RGD-100
  • Blade Thickness: 0.5mm
  • Packing Size (mm): 1300×900×1000 (L*W*H)
  • Weight: 80kg
  • Volume: 1.2 CBM



cutting-machine-for-dustless-chalk-making-machine-3

cutting-machine-for-dustless-chalk-making-machine-2

5.  Drying Box of Dust-free Chalk Making Machine

Feature:
Infrared radiation heating, automatic temperature control, low power, warming faster and uniform.

Specification

  • Model: RHG-100
  • Control Temperature: 30~120℃
  • Power: 15kw Three-phase Four-wire
  • Packing Size (mm): 3800×1700×2560 (L*W*H)
  • Weight: 1000KG
  • Volume: 17 CBM
  • Note: Drying box is optional.

Drying-Box-for-dustless-chalk-making-machine-2

6.  Chalk Pallet of Dust-free Chalk Making Machine

Drying-Box-for-dustless-chalk-making-machine-2

Chalk-Pallet-for-dustless-chalk-making-machine

Specification

  • Material: wood
  • Size: 900×450×60 (L*W*H)
  • Note: Chalk pallet is optional.
  • Calcium carbonate: one ton of calcium carbonate can produce 100,000pcs dust free chalks.
  • Color slurry: red, yellow, green, blue, rose-red.
  • Every 5kg calcium carbonate consumes 0.15kg color slurry. We will supply above materials and technology as per customer’s requirement.

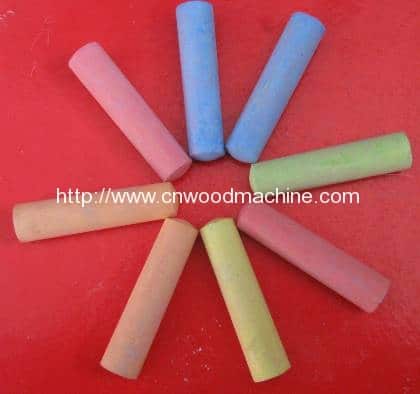

Size of Chalk

Dust-free Chalk Making Machine

Sizes of Chalk
Shape Base Top Length
Unit mm
Round 10 8 76
Round 10 9.5 80
Round 9.5 9 80
Round 11 9 80
Round 11 10.5 80
Round 11 9.5 80
Round 12 11.5 80
Round 12 9 80
Round 14 12 80
Round 22 18 80
Round 25 22 105
Round 25 22 90
Hexagonal 11 9 76
Hexagonal 11 9 80
Hexagonal 10 9 76
Square 10 9.5 80
