Best wooden products making machine supplier

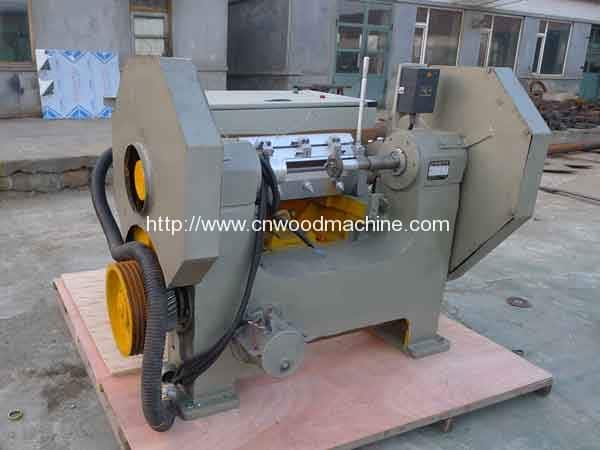

Double Segment Rotary Cutting Machine


Double Segment Rotary Cutting Machine applies to process small diameter round wood material. It has computer controlling system, adjust easily, low noise, easy operation, good rigidity and high efficiency. It is widely used in wood processing machine. Double Segment Rotary Cutting Machine is necessary machine for ice cream sticks production line and ice cream spoons production line.

Whole Ice Cream Sticks Production Line

  1. Double Segment Rotary Cutting Machine
  2. Tri-Carved Cutting Machine
  3. Drying and Polishing Machine
  4. Ice Cream Sticks Selecting Machine
  5. Ice Cream Sticks Chamfering Machine
  6. Ice Cream Sticks Branding Machine
  7. Ice Cream Sticks Bundling Machine
  8. Ice Cream Sticks Ordering Machine


4. Wood Plate Making

Features of Rotary Cutting Machine

  1. Feeding part adopts ferrobronze and lead screw is made of 663# abrasion-proof material.
  2. Adopt transducer 、PLC programming unit and other high-performance numerical control components.
  3. The machine works stably and safely.
  4. This machine is suitable to process birch、poplar、eucalyptus、pine and other wood materials.

Specification of Rotary Cutting Machine

Model RM-RDS
Wood Board Thickness 1- 8mm
Processing Length <520mm
Clamping Diameter <800mm
Dimension 2500*2400*1300mm
Principal Axis Speed 0 – 220 r/min
Main Motor Power 7.5 Kw & 1400r/min
Moving Forward Motor Power 1.5 Kw & 1400r/min
Auxiliary Clamping Motor Power 1.5 Kw & 1400r/min
Weight 2350kg
Max Cuting Speed 380mm/s


Cutting Wood Plate Roll


Working Video of Double Segment Ratory Cutting Machine

Company Profile

Romiter Group are one of the leading organization engaged in providing excellent quality Wooden Ice Cream Sticks Making Machines, wooden tongue depressor making machine, wooden magnum making machine, wooden spoons making machine, plastic coffee stirrer bundling machine, coffee mixer bundling machine, wooden & bamboo toothpicks making machine, which are manufactured by using high grade material. These Wooden Ice Cream Sticks Making Machines , wooden magnum making machine, coffee stirrer bundling machine are widely appreciated by our clients which are situated all round the nation. High in demand, these Wooden Ice Cream Sticks Making Machines are available at most reasonable prices.
